APARTMENTS AT KIKERONOS STREET IN ANGLANTZIA, NICOSIA

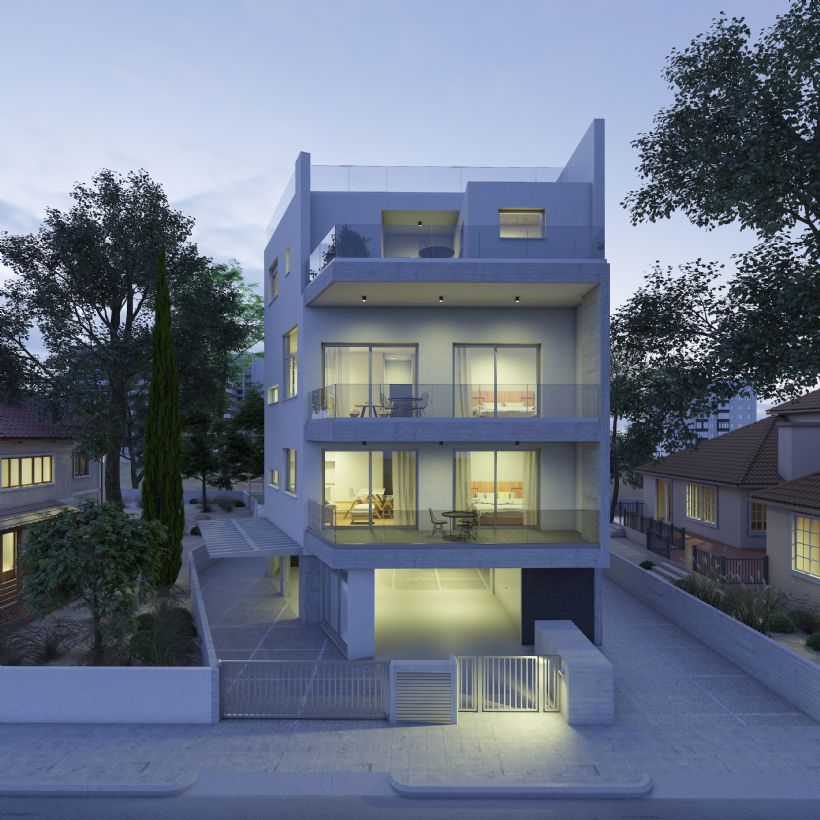

The building – Description

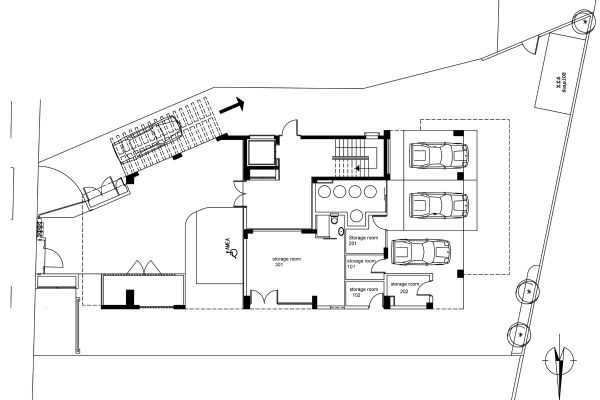

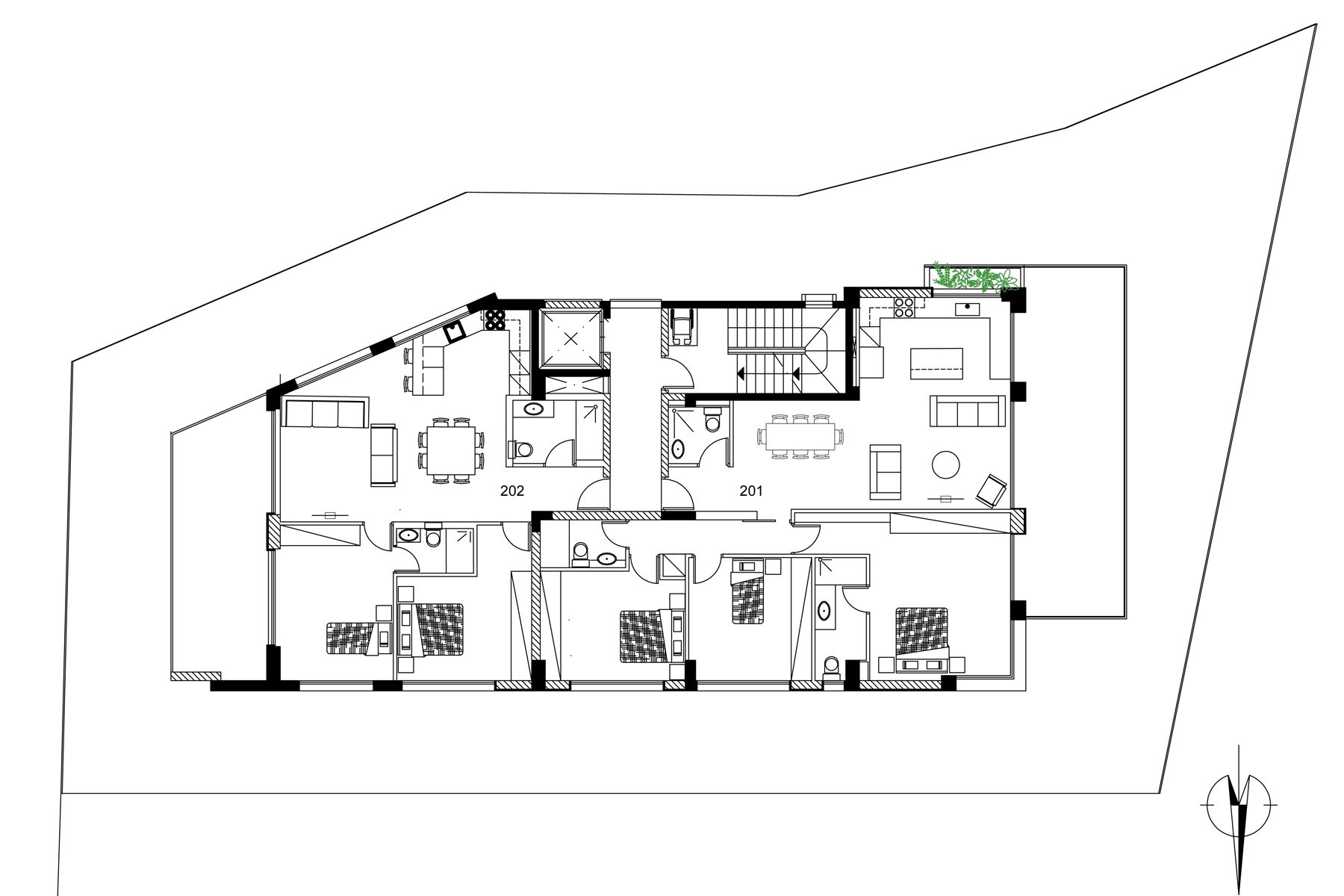

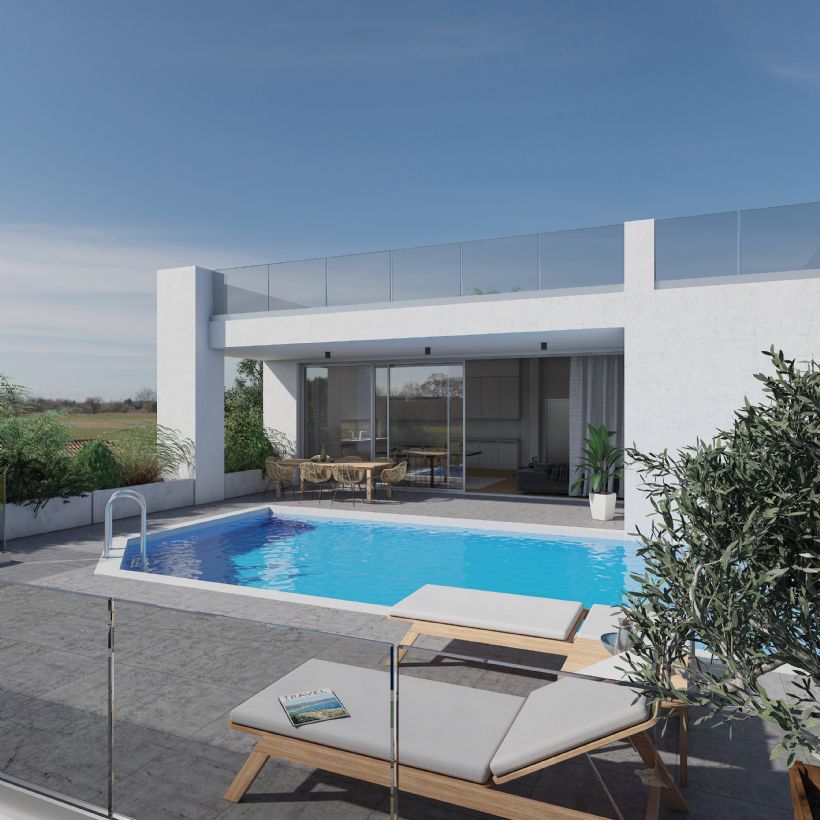

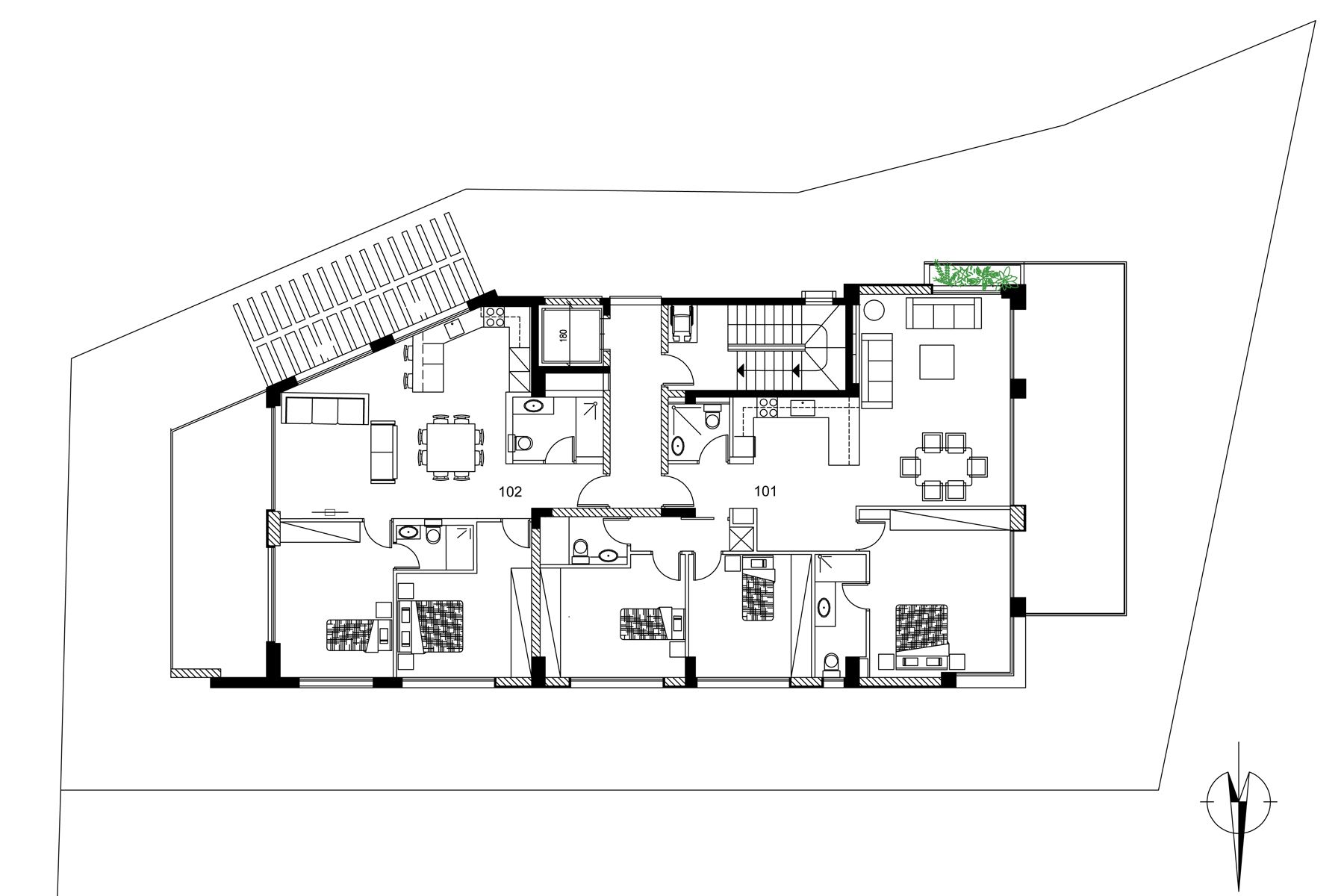

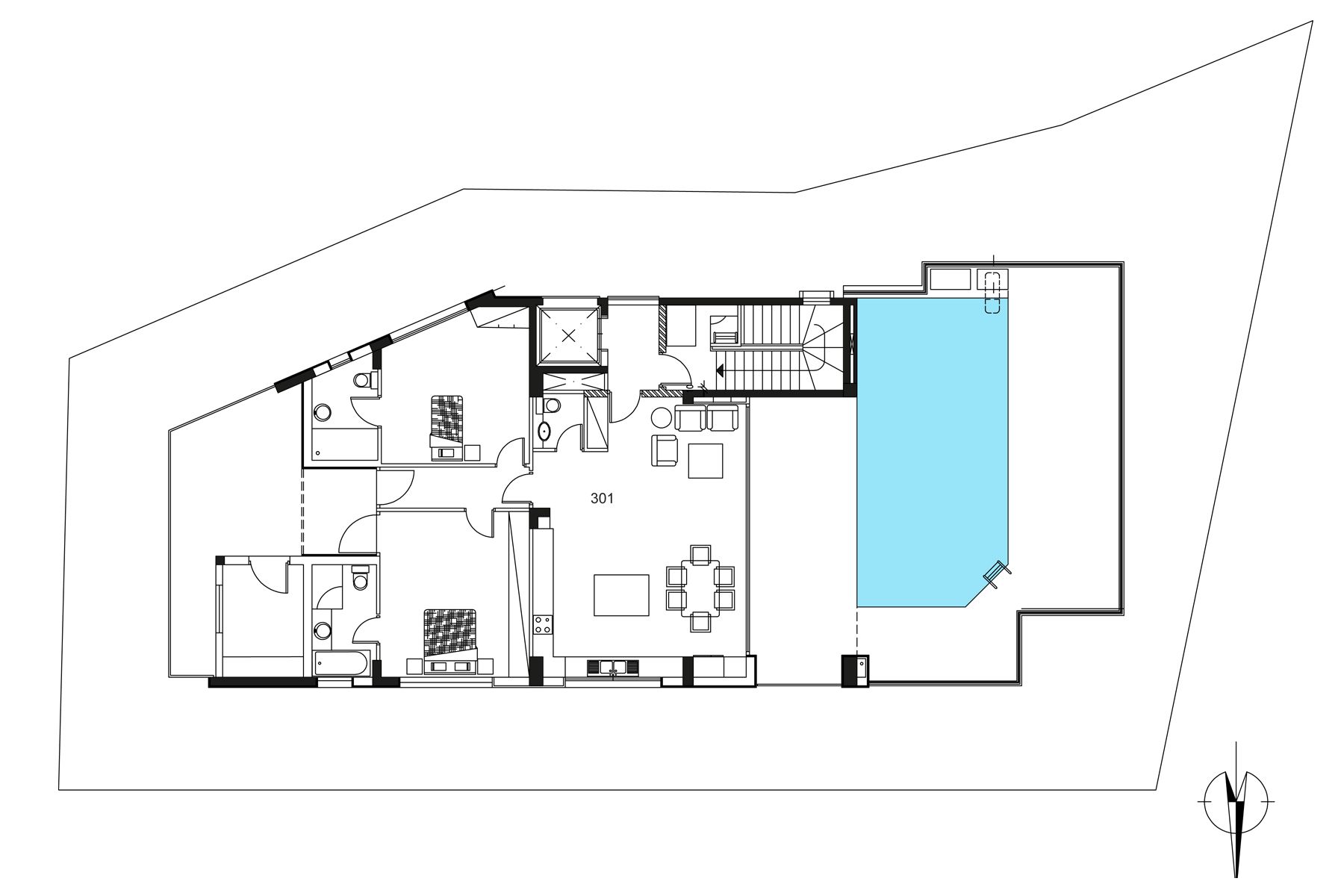

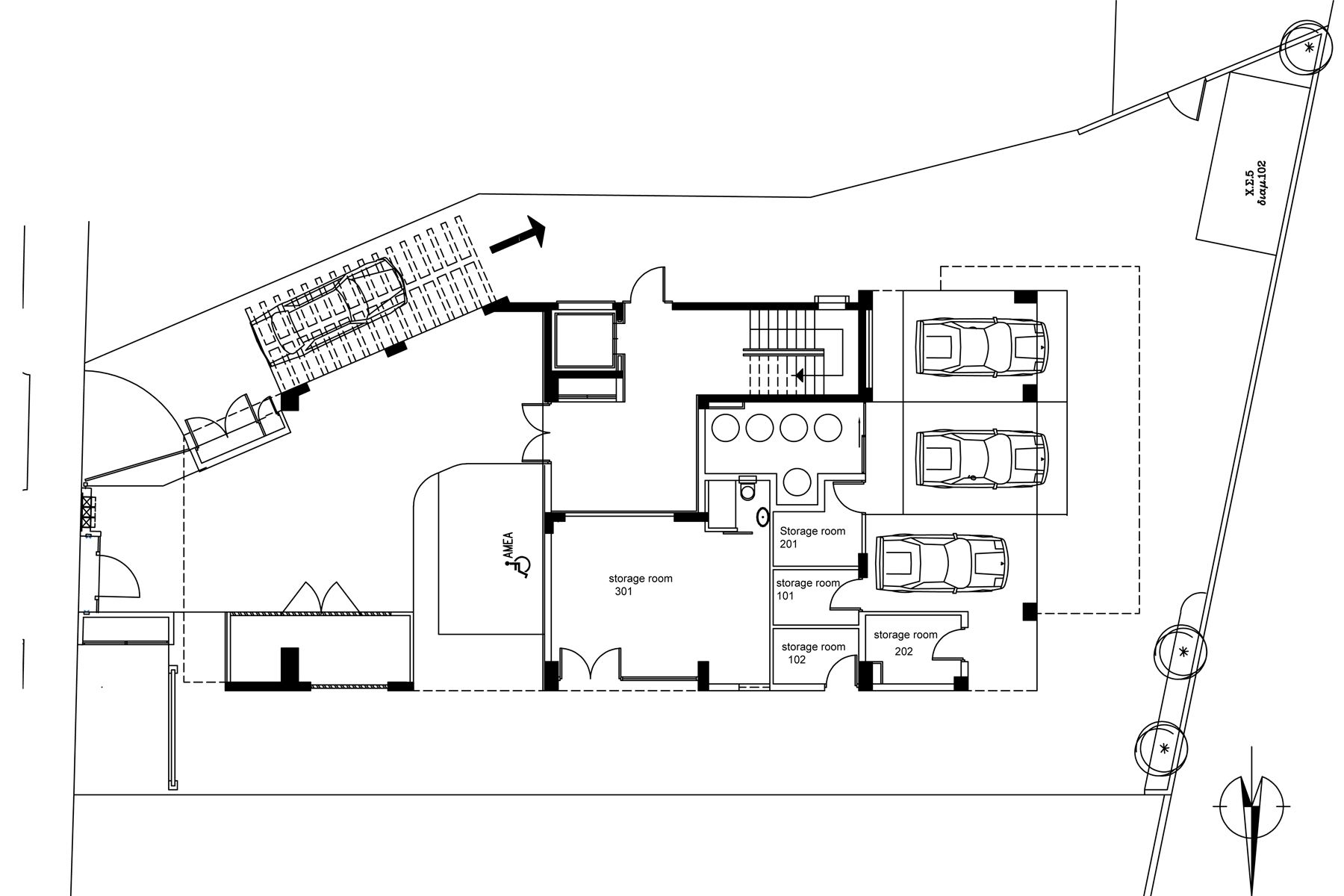

The building consists of 5 apartments. On the ground floor there is the main entrance and the parking lots. On the first floor and second floor there are one 2 bedroom and one 3 bedroom apartments on each floor, on the third floor there is a 2-bedroom penthouse apartment with a pool.
Structural specifications
Building’s Energy Characteristics : All apartments have class A’ Energy Coefficient with low CO2 emissions, environmentally friendly.
Frame: The frame of the building will be made of reinforced concrete.
Walls: The external masonry infills will be constructed of 250mm bricks and thermal insulation system. The interior partitions will be made of dry wall system 125mm thick. The partitions between separate apartments will be 250mm blocks.
Roofing - Waterproofing: 80 mm extruded polystyrene, screed, 4mm asphalt membrane insulation reinforced with polyester and mosaic. Cement based waterproofing insulation will be applied on the verandas and to all external floors that will receive ceramic tiles or other material.
Floorings: All internal conditioned spaces with underfloor heating will be covered with screed. The substrate of the underfloor heating for covering services will be lightweight concrete.
Paint-work: Three coats of emulsion paint on interior walls in general. Three coats of emulsion and spatula on interior ceilings. Three coats of emulsion paint for exterior use on exterior surfaces. Oil paint or anti-stain paint on the metal surfaces of railings. Oil paints in general will be applied in three coats (primer, undercoat and finish).
External works: General earthworks and concreting works for the shaping of exterior spaces. Low concrete walls on the ground floor at a height of 1m. Construction of public pavement at the entrance of the building and landscaping.
Plumbing: Water supply with a pressurized system of pipes of a minimum 15mm diameter, hot water return pump, sewage /drainage and drainage gutters on the terrace for rainwater. Water tanks of 1 ½ tons capacity per apartment and hot water supply system with the use of the solar collectors and the electric element.
Mechanical works: Water underfloor heating system with electric heat pump of high energy class for each apartment. Supply and Installation of air-conditioning units energy class A on the bedrooms and concealed fan coils on the dining/living room. Mechanical ventilation for interior lavatories/bathroom
Electrical works: Photovoltaic system on the roof for renewable source of energy. In general all electrical parts of European manufacturer. 16 free plug sockets, 4 telephone outlets and 4 television outlets to be included for the 2-bedroom apartments. 21 free plug sockets, 5 telephone outlets and 3 television outlets to be included for the 3-bedroom apartments. First class quality video-phone (intercom) system, electric immersion heater and two-way light switches in the bedrooms. In the kitchen all fitted appliances will be wired inside the walls by a spur fused unit and will include points for oven, kitchen hob, washing machine, dishwasher, refrigerator and extractor fan.
Elevator: Installation of one 8-person elevator with no engine room, with an alarm system in case of emergency.
Metal works: Aluminum frame windows and external doors with double-glazing. External shading system made of aluminum at the bedrooms. Metal balustrades to staircases. Glass metal railing on the verandas.
Wood works: Internal doors, wardrobes and bathroom benches with laminated boards. Kitchen benches and wall units with MDF lacquered finish. Entrance door of the apartment to be ½ hour fire – resistant with timber veneer finish. The bench top will be of techno-granite.
General: Letter boxes will be installed at the entrance hall of the building, one for each apartment. A central television system (aerial), provision for cable television connection and provision for satellite television system will be installed at the roof.
The information in pdf format is a printer friendly file containing a brief description of the building, the plans to scale, the areas, the location map and the specifications. This file can be printed on A4 paper. For more detailed information please contact Nice Day Developments and request the brochure. VIEW PDF ATTACHMENT
