BUILDING SPECIFICATIONS
The building – Description
The housing complex is composed of 9 independent two-storey houses of different sizes and each one owns a land percentage.
Structural specifications
Frame: The frame of the building will be of reinforced concrete.
Masonry
The masonry will be constructed of bricks and three coats of render. The exterior walls will be 300 mm thick of thermal insulated bricks and the internal walls of drywall system 125 mm thick.
Energy performance
Houses 2-3, 6, 7, 8, 9 and 10 will have an Energy Performance Class (E.P.C.) of A with low CO2 emissions, environmentally friendly. This is achieved via installation of photovoltaic system of 5KW on the roof of each house. Houses 1 and 5 have an energy performance Class of B+ and house 4 has an Energy Performance Class of B.
Roofing – Waterproofing
Lightweight concrete or extruded polystyrene and insulation with tar paper sp thickness 4 mm on the roof. Lightweight concrete and insulation with tar paper sp thickness 3 mm on the verandas. Roofmate 5cm thick as a thermal insulation.
Floorings
Light concrete screed for ceramics and marble and concrete for carpets and parquet floors.
Paint-work
Three coats of emulsion on interior walls in general. Three coats of emulsion and spatula on interior ceilings. Sandex paint and spatula on exterior ceilings. Oil paint on the metal surfaces of railings. Oil paints in general will be applied in three coats (primer, undercoat and finish).
External works
General earthworks and concreting works for the shaping of exterior spaces. Low concrete walls on the ground floor at a height of 1m. Construction of public pavement at the entrance of the building.
Plumbing:
Water supply with pressure system consisting of pipes of a minimum 15mm diameter, hot water return pump, solar collectors with an electric immersion heater, sewage /drainage and drainage gutters on the terrace for rainwater. Water tanks of 2 tons capacity per house and hot water supply system with the use of the 2 solar collectors (1X2m) and the electric element.
Mechanical works
Water underfloor heating system with electric heat pump of high energy class. Supply and Installation of air-conditioning units (split units) on the bedrooms and concealed fan coils on the dining/living room. Mechanical ventilation for interior lavatories/bathroom.
Electrical works
Photovoltaic system of 5KW on the roof for renewable source of energy. In general electrical parts of European manufacture. At least 25 free plug sockets for the three bedroom apartment, 6 telephone outlets and 6 television outlets. In the kitchen all fitted appliances will be wired inside the walls by a fused spare unit and will include points for oven, microwave, kitchen hob, washing machine, dishwasher, and refrigerator and extractor fan. One videophone intercom per level.
Metal works
Aluminium windows and double glazing doors of the architect’s approval. Aluminium blinds of external use for the bedroom windows. Metal railing on the verandas.
Wood works
Internal doors, wardrobes and bathroom benches with laminated boards. Kitchen benches and wall units with MDF lacquered finish.

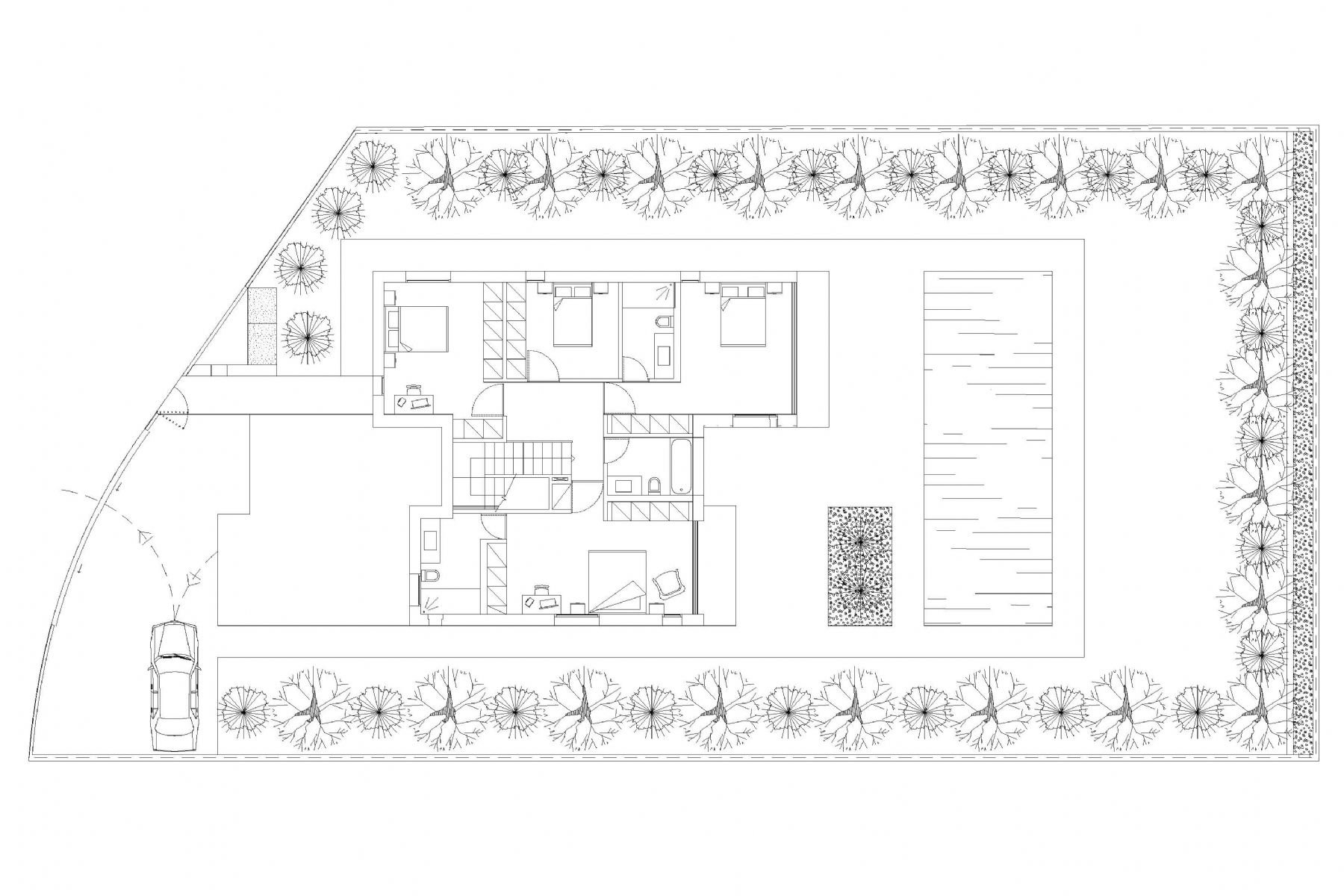

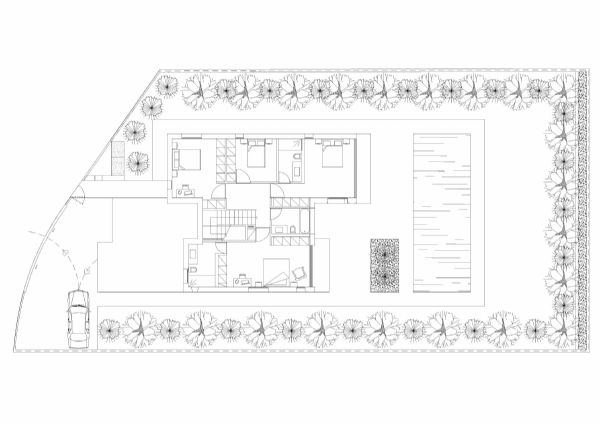

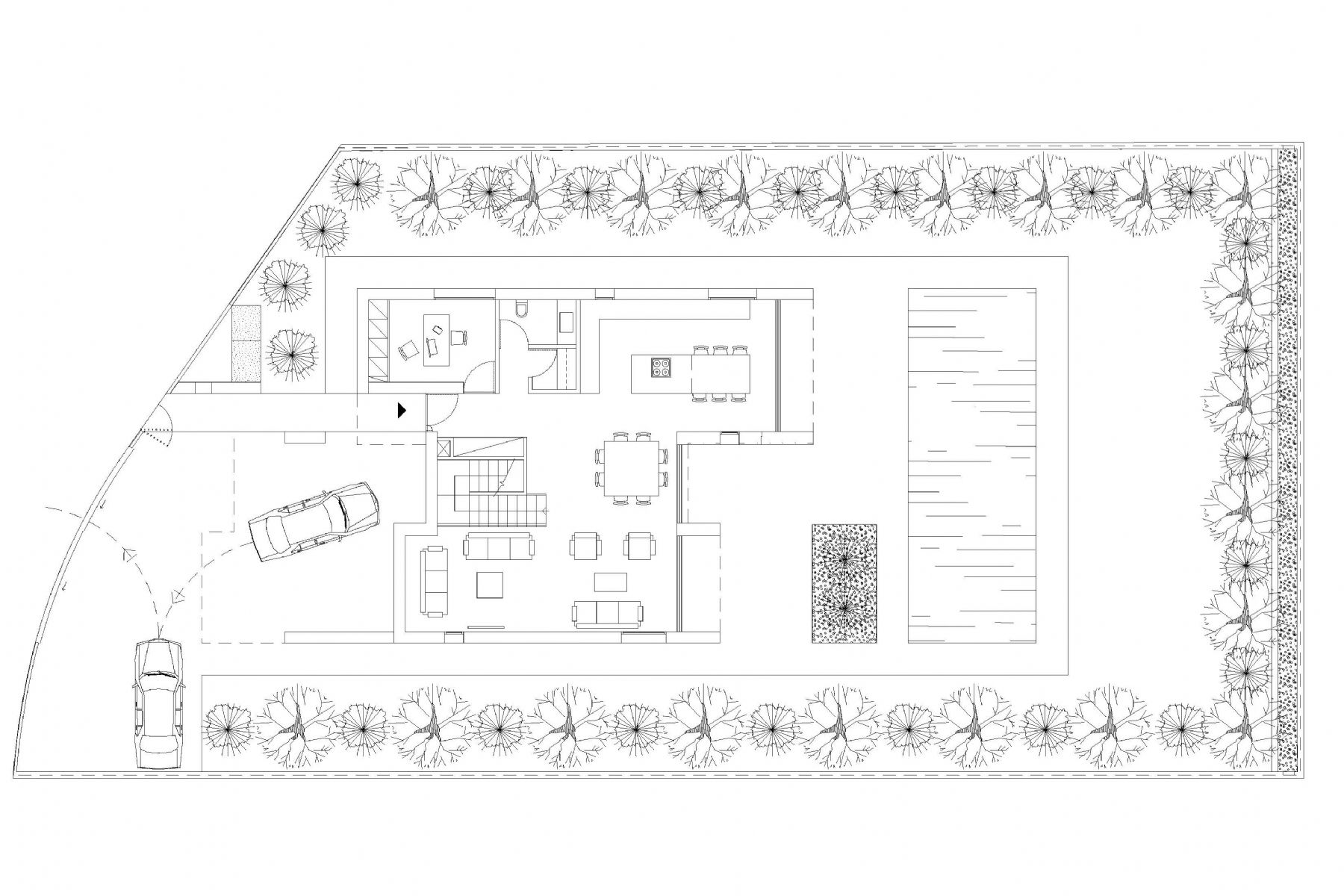

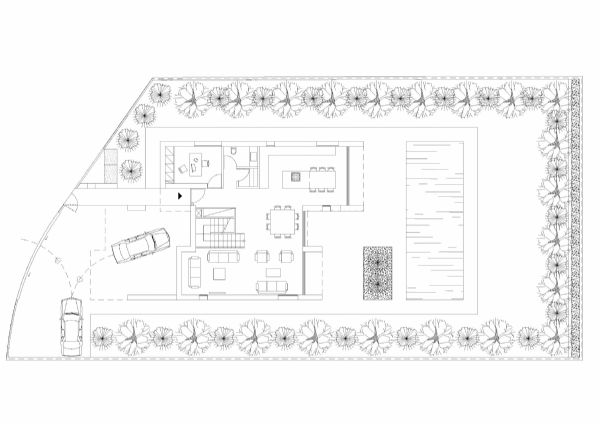

The information in pdf format is a printer friendly file containing a brief description of the building, the plans to scale, the areas, the location map and the specifications. This file can be printed on A4 paper. For more detailed information please contact Nice Day Developments and request the brochure. VIEW PDF ATTACHMENT
