The building – Description
This multi-storey building is composed of three basements where the parking spaces and the store-rooms are located, the ground floor with a shop and the mezzanine, 6 floors offices and 6 floor with apartments and one floor with mechanical and common garden areas.
Structural specifications
Energy Performance Certificate
The Building comply with the local Energy Performance regulation and have an A’ rating certificate of energy performance and low CO2 emission.
Offices Energy Performance rating A.
Apartments Energy Performance rating A for 801,802,901,902,1001,1002,1101,1102,1201,1301
Frame
The frame of the building will be of reinforced concrete and steel frame.
Masonry
Some of the interior walls will be constructed of gypsum boards (dry partitions) and some of brickwork. The finish coding will be from Peletico.
Roofing -Waterproofing- thermal insulation:
Light weight concrete and insulation with tar paper sp thickness 4 mm on the roof. Thermal insulation with extruded polystyrene 70mm thick will be installed.
Floorings
Light weight concrete screed for ceramics and marble and grated concrete for the raised floor.
Paint-work
Three coats of emulsion on interior walls in general. Three coats of emulsion and spatula on interior ceilings. Three coats of emulsion for outdoor use on exterior walls. Emulsion for outdoor use and spatula on exterior ceilings. Oil paint on the metal surfaces of railings. Oil paints in general will be applied in three coats (primer, undercoat and finish).
External works
General earthworks and concreting works for the shaping of exterior spaces. Construction of public pavement at the entrance to the building. Construction of public pavement at the building’s entrance.
External façade: The building externally will be cladded according to the architectural drawings.
Plumbing
Gravity plumbing system consisting of copper pipes with a minimum diameter of 15 mm, sewage/drainage, drainage gutters on the terrace for rainwater. Water tanks at the basement sending the water to the roof and hot water supply system from central heating system with independent circulation pump for each apartment.
Mechanical works
Central under floor heating system for each apartment. Artificial ventilation for interior lavatories/bathrooms. Split-unit provisions for every shop and provisions for VRV system for the offices with the installation of the necessary piping, electricity supply and compressors.
Electrical works
In general electrical parts of European manufacturer. At least 35 free plug sockets to be included for each apartment and six television points. Each office floor will consist of 30 floor boxes, each one consisting of 4 power plugs and 2 structural cabling points. Alarm system, centralised fire detection system, structural cabling, A' quality video-phone system, electrical element in the water heater. In the kitchen all fitted appliances will be wired inside the walls by a heater switch, and there will be supply points for two ovens, an electrical hob, dishwasher and washing machine, extractor and refrigerator.
Elevator
Installation of two 8-person panoramic Mitsubishi elevators with an alarm system in case of emergency. Internal cladding from stainless steel and concealed roof lighting.
Metal works
Anodised aluminium windows and doors with double glazing. Galvanized frames. Metal railing for the stairwell, verandas and the terrace.
Wood works
Internal doors, wardrobes and bathroom benches with HPL laminated boards. Kitchen benches and wall units with MDF lacquered finish. Entrance door of the apartment to be ½ hour fire – resistant with timber veneer finish. The bench tops will be of techno-granite.
In general
Letter boxes will be installed in the hall of the building, one for each apartment. A lighting rod will be installed on the roof.

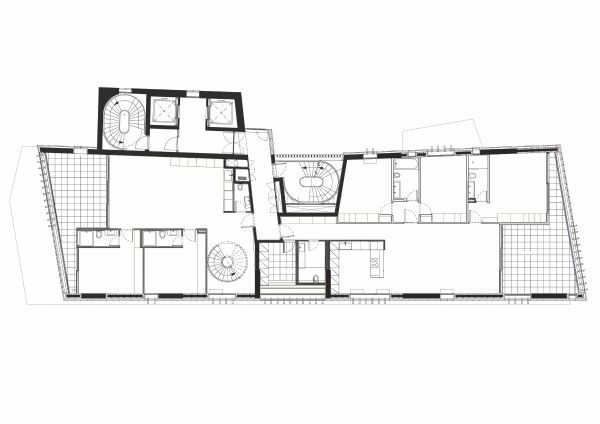

The information in pdf format is a printer friendly file containing a brief description of the building, the plans to scale, the areas, the location map and the specifications. This file can be printed on A4 paper. For more detailed information please contact Nice Day Developments and request the brochure. VIEW PDF ATTACHMENT
