BUILDING SPECIFICATIONS
The building – Description

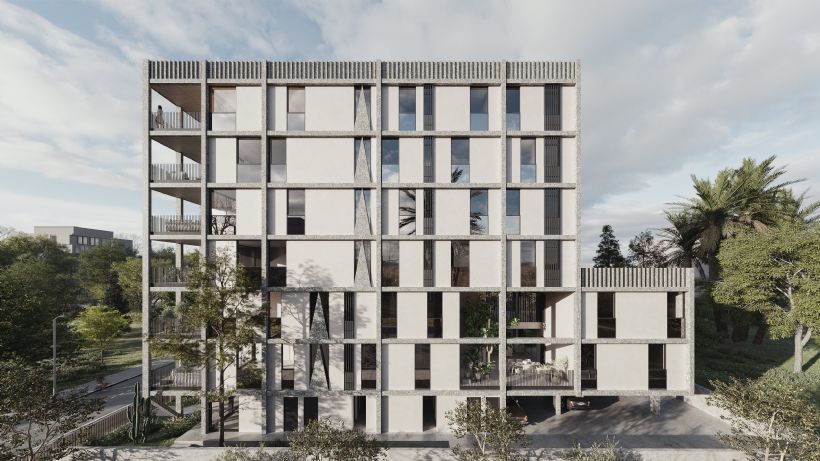

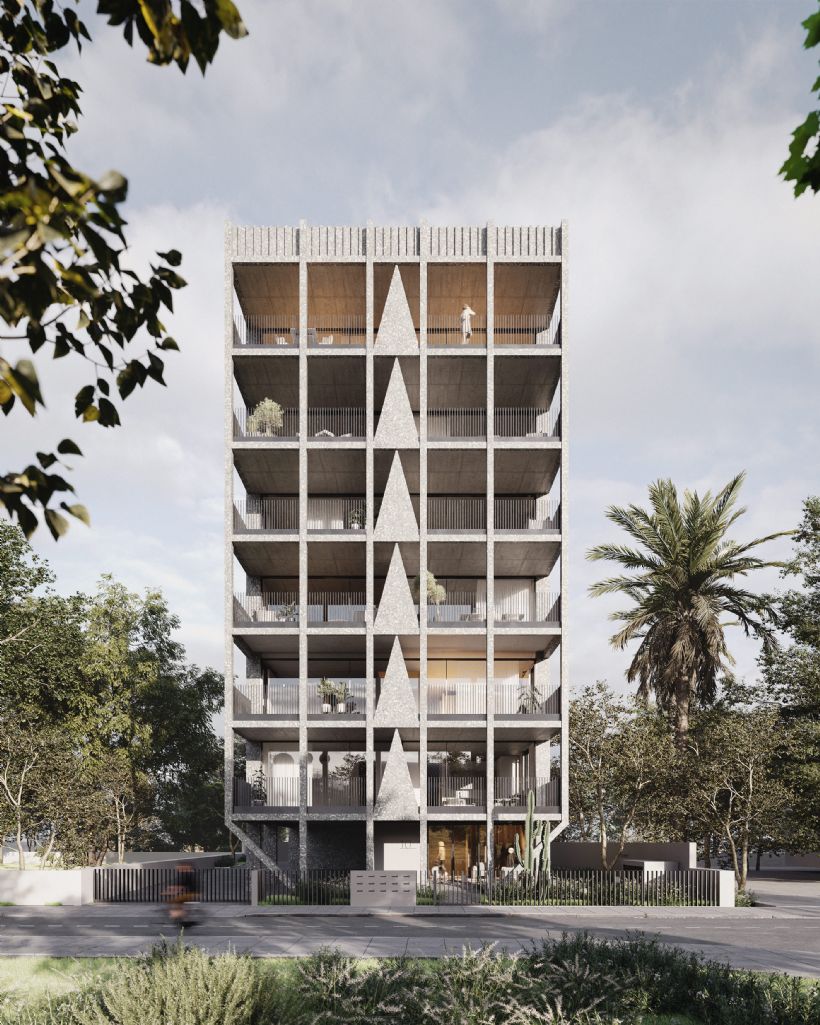

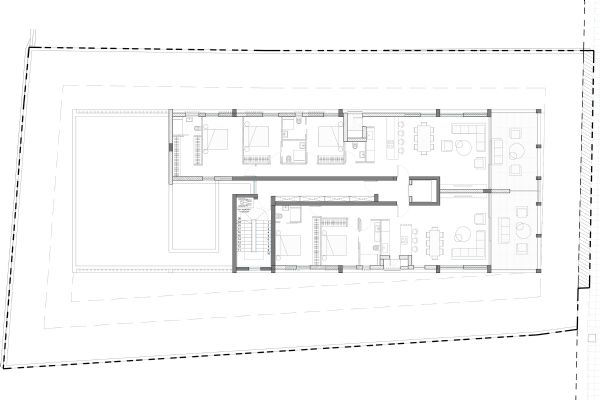

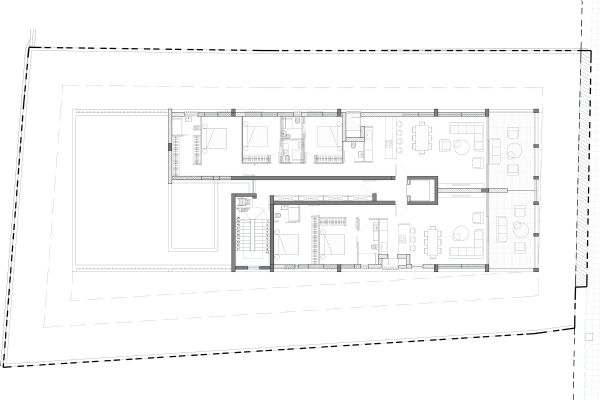

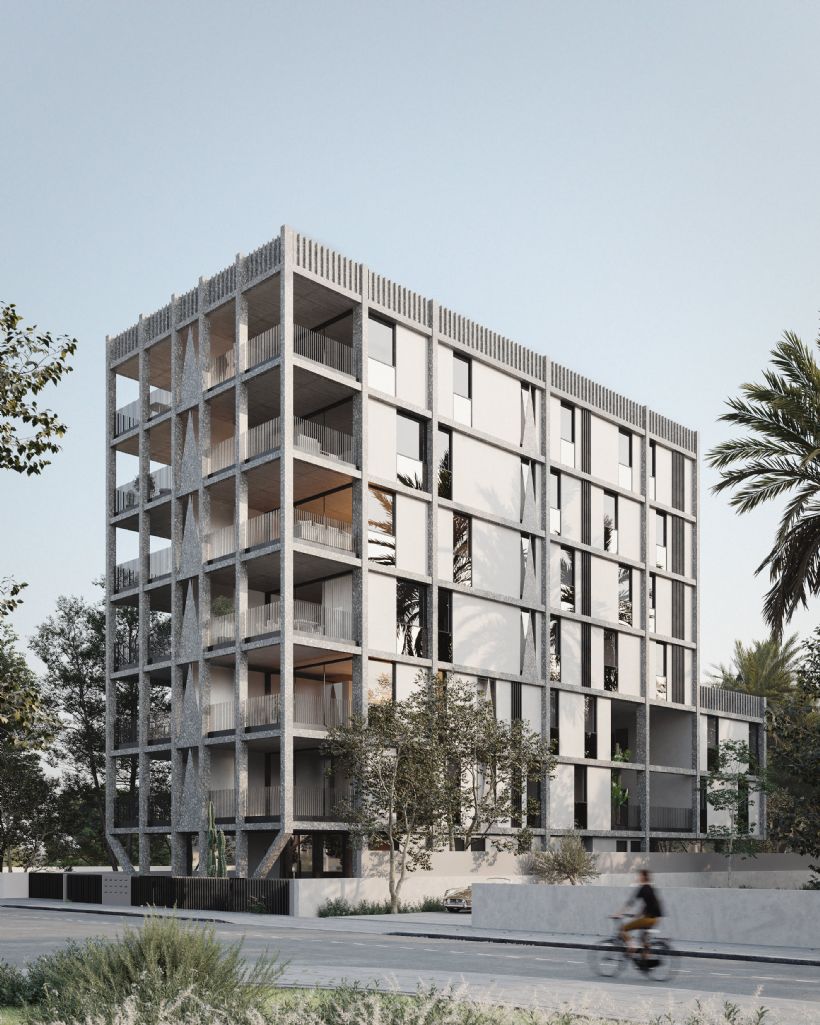

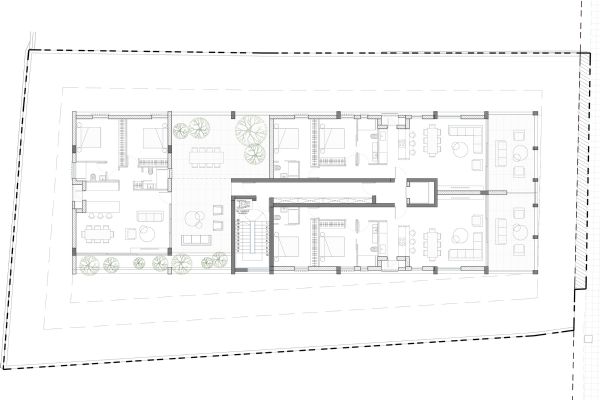

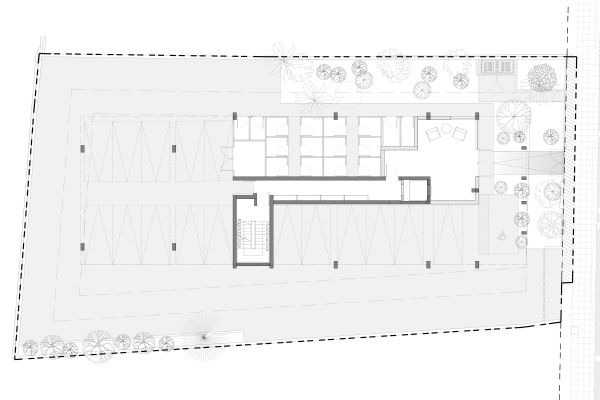

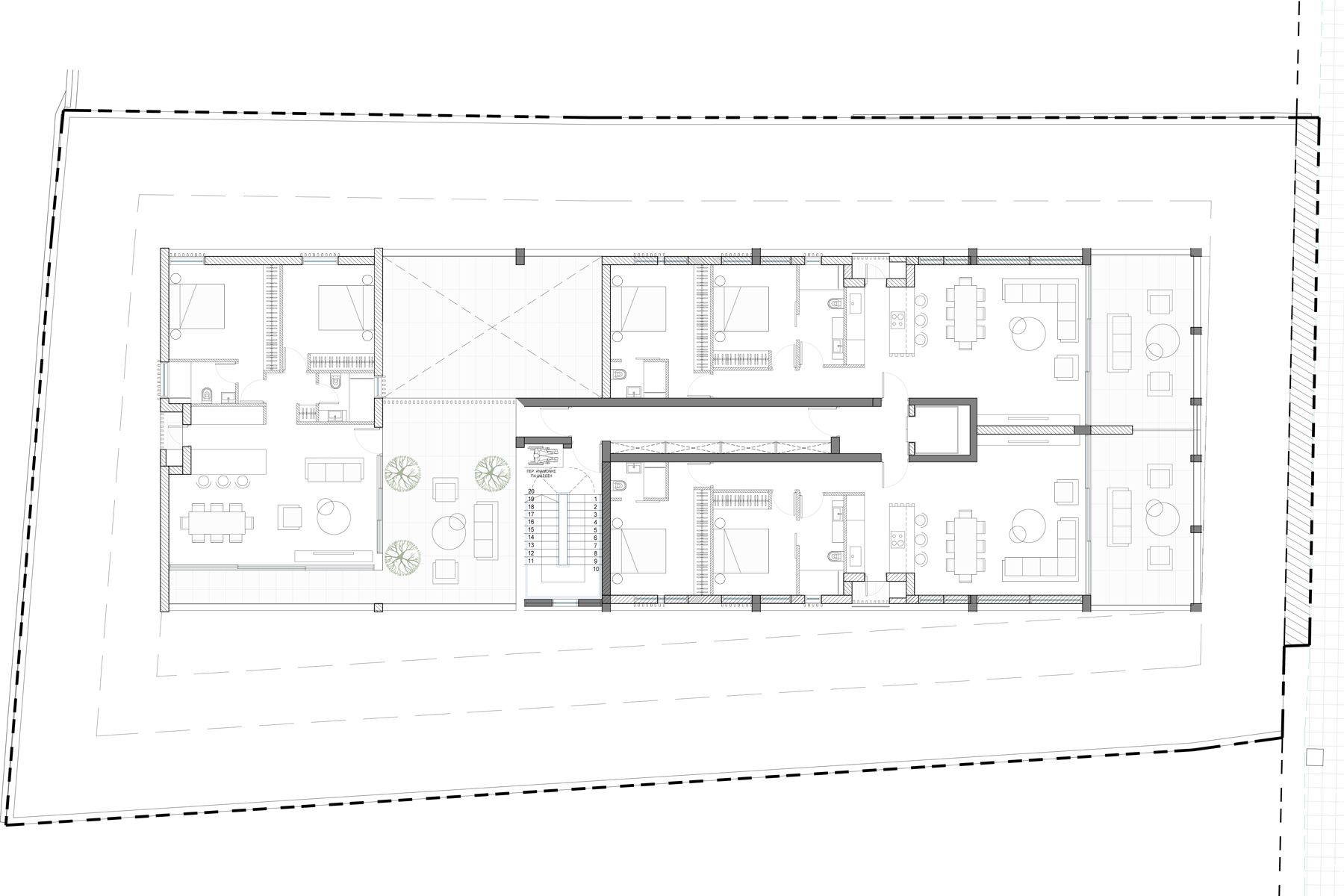

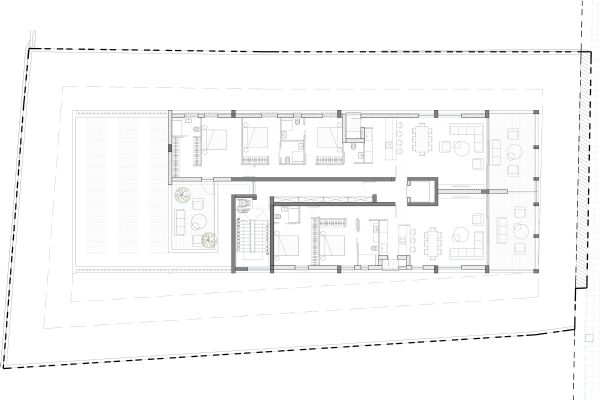

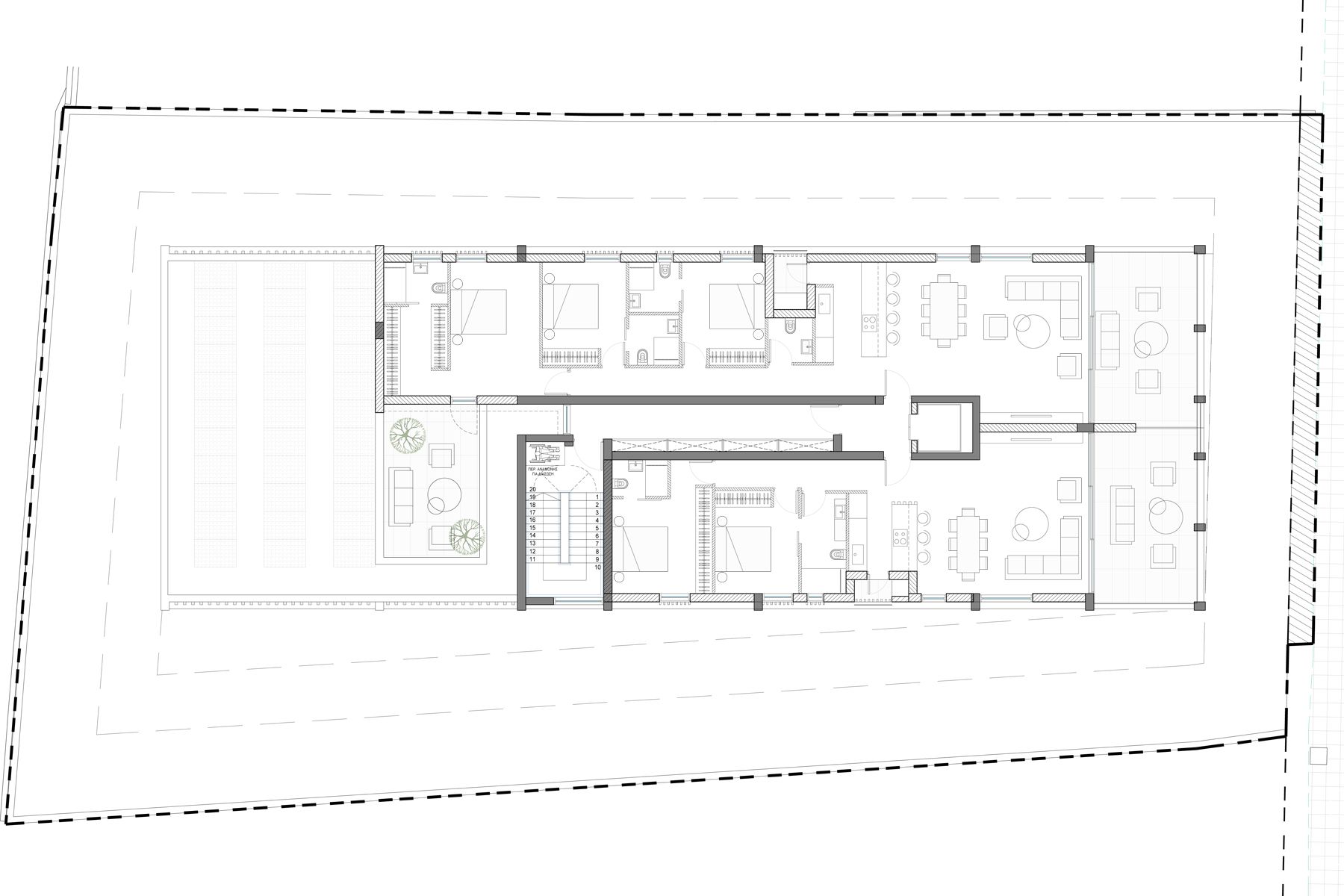

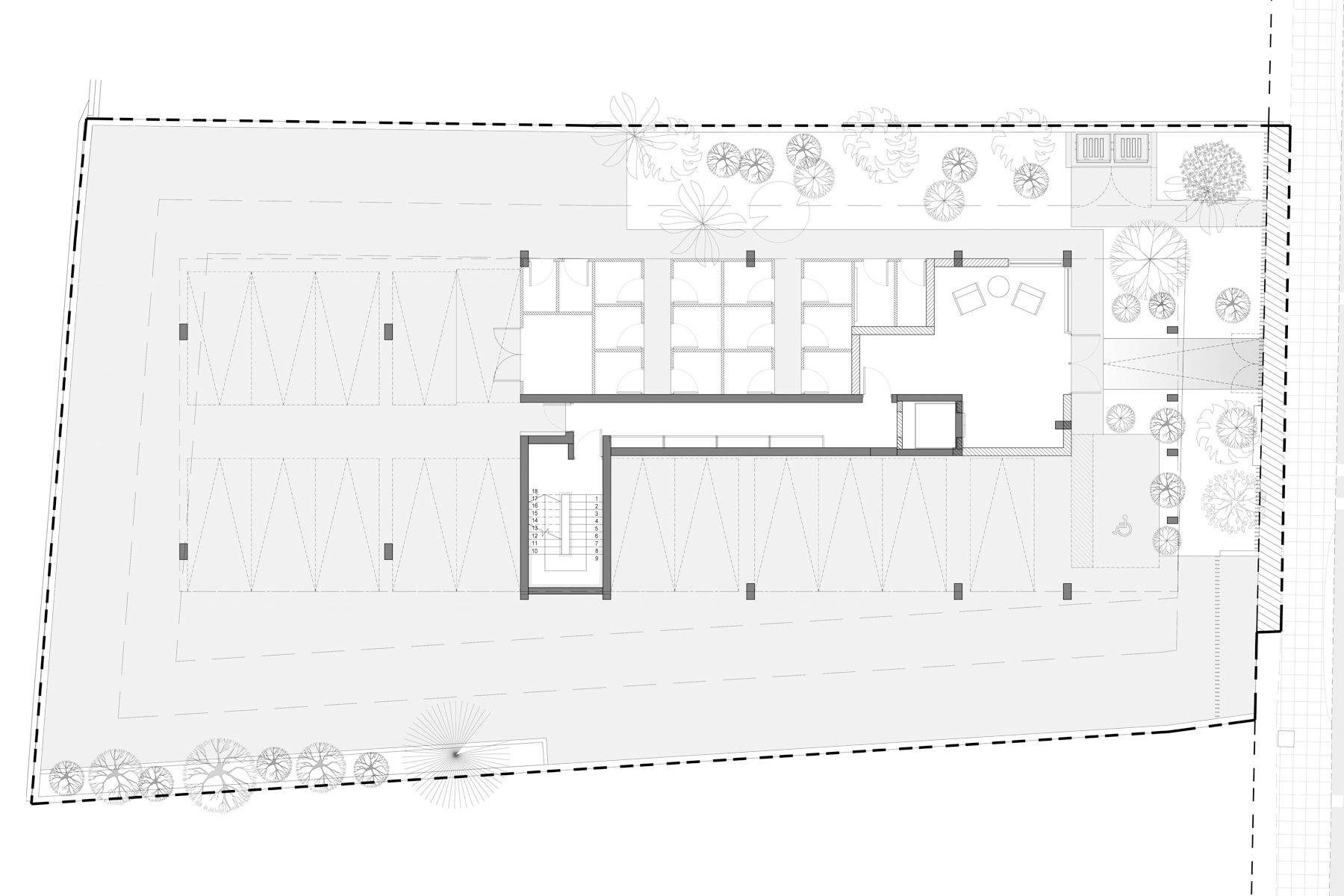

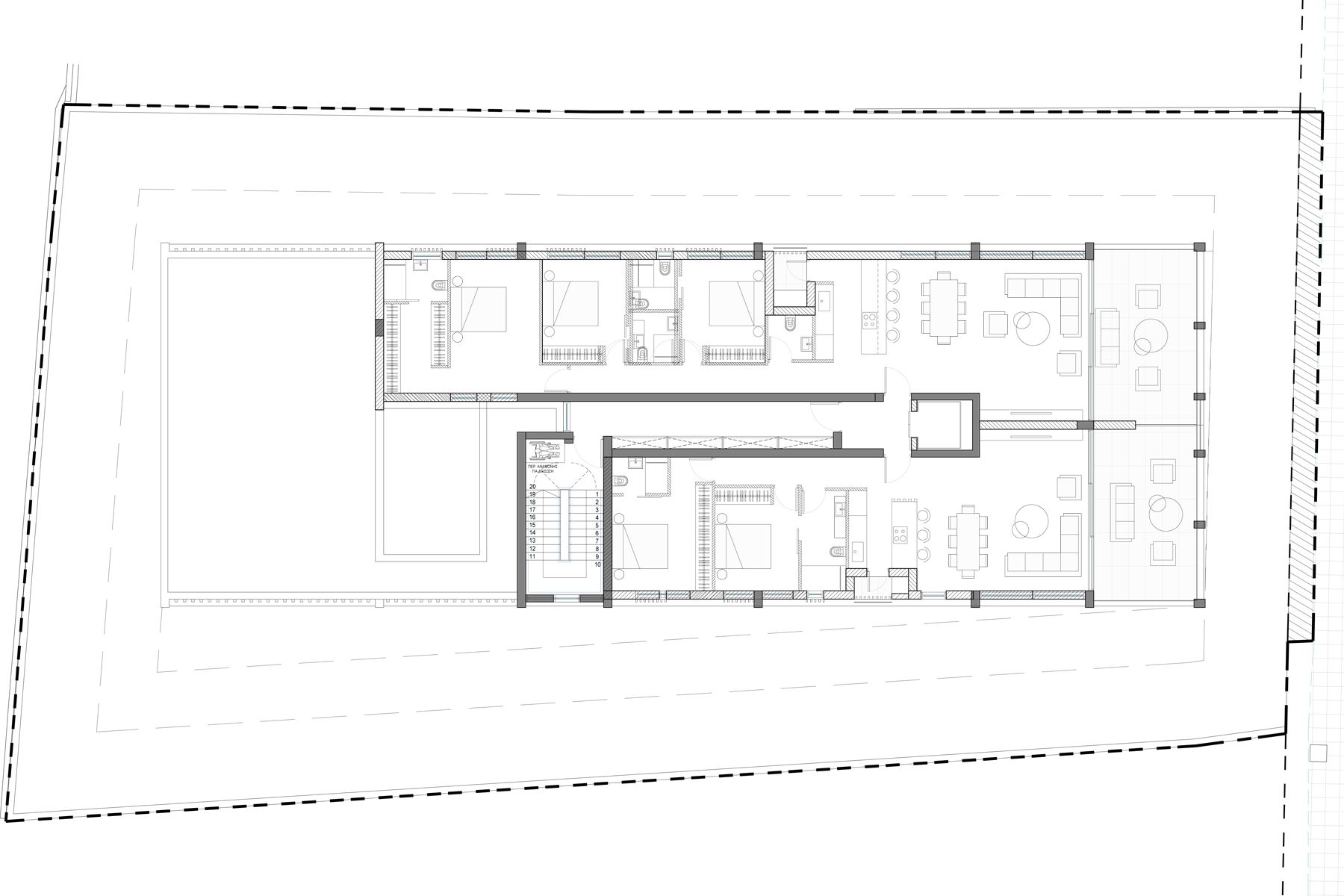

The building is composed of six floors and 14 apartments: the ground floor where the parking spaces and the stores are located, the 1st floor and 2nd floor with 3 two-bedroom apartments each, the 3rd,4th, 5th and 6th floors with1 two-bedroom and 1 three -bedroom. There is the possibility of unifying apartments to make them one floor apartment.
Structural specifications
Building’s Energy Characteristics
All apartments have class A’ Energy Coefficient with low CO2 emissions, environmentally friendly.
Frame
The frame of the building will be of reinforced concrete. The ceiling verandas and living room ceiling will be fair face concrete.
Walls
The masonry infills will be constructed of 250 mm thick bricks and three coats of render internally. Externally a thermal insulation system will be applied. The interior dry wall system includes rockwool. The separating walls in-between apartments will be constructed from brick walls 200 mm thick.
Roofing - Waterproofing
80mm extruded polystyrene. Non-reinforced concrete, 4mm asphalt membrane insulation, extruded polystyrene on the roof. Non-reinforced concrete and cement based water insulation on the verandas and all external floors with cement base waterproofing. .
Floorings
All internal conditioned spaces with underfloor heating will be covered with screed on lightweight concrete sublevel for covering services.
Paint-work
Three coats of emulsion paint on interior walls in general. Three coats of emulsion and spatula on interior ceilings. Sandex paint and spatula on exterior ceilings. Oil paint or hummerite paint on the metal surfaces of railings. Oil paints in general will be applied in three coats (primer, undercoat and finish).
External works
General earthworks and concreting works for the shaping of exterior spaces. Low concrete walls on the ground floor at a height of 1m. Construction of public pavement at the entrance of the building and landscaping.
Plumbing
Water supply will be achieved with a pressurised plumbing system of pipes of a minimum 15mm diameter, hot water return pump, solar collectors with an electric immersion heater, sewage /drainage and drainage gutters on the terrace for rainwater. Water tanks of 1 ½ tons capacity for each apartment. Hot water supply system will be achieved via solar collectors and electric element.
Mechanical works
Water underfloor heating system with electric VRV system of high energy class for each apartment. Supply and Installation of air-conditioning units energy class A on the bedrooms and concealed fan coils on the dining/living room. Mechanical ventilation for interior lavatories/bathroom.
Electrical works
Photovoltaic system on the roof for renewable source of energy. Installation of electrical parts of European manufacturer. At least 15 free plug sockets, 2 telephone outlets and 3 television outlets to be included for the 2-bedroom apartments. At least 20 free plug sockets, 4 telephone outlets and 3 television outlets to be included for the 3-bedroom apartment. At least 25 free plug sockets, 5 telephone outlets and 5 television outlets to be included for the 4-bedroom apartment. High quality video-phone (intercom) system, electric immersion heater and two-way light switches in the bedrooms. In the kitchen all fitted appliances will be wired inside the walls by a spur fused unit and will include points for oven, microwave, kitchen hob, washing machine, dishwasher, refrigerator and extractor fan.
Elevator
Installation of one 6-person elevator with an alarm system in case of emergency.
Metal works
Anodised aluminium windows and doors with double-glazing. Aluminium Electrical Venetian blinds of external use for the bedroom windows and doors. Metal balustrades to staircases. Metal railing on the verandas.
Wood works
Internal doors, wardrobes and bathroom benches with laminated boards. Kitchen benches and wall units with MDF lacquered finish. Entrance door of the apartment to be ½ hour fire – resistant with timber veneer finish. The bench tops will be of techno-granite.
General
Letter boxes will be installed at the entrance hall of the building, one for each apartment. Central television system will be installed on the roof.
The information in pdf format is a printer friendly file containing a brief description of the building, the plans to scale, the areas, the location map and the specifications. This file can be printed on A4 paper. For more detailed information please contact Nice Day Developments and request the brochure. VIEW PDF ATTACHMENT
